Toronto Outdoor Spiral Staircase

Toronto Outdoor Spiral Staircase - Product Description

• Take up very little room below

• Weather resistant spiral staircase

• Ideal for outdoor use

• No maintenance needed

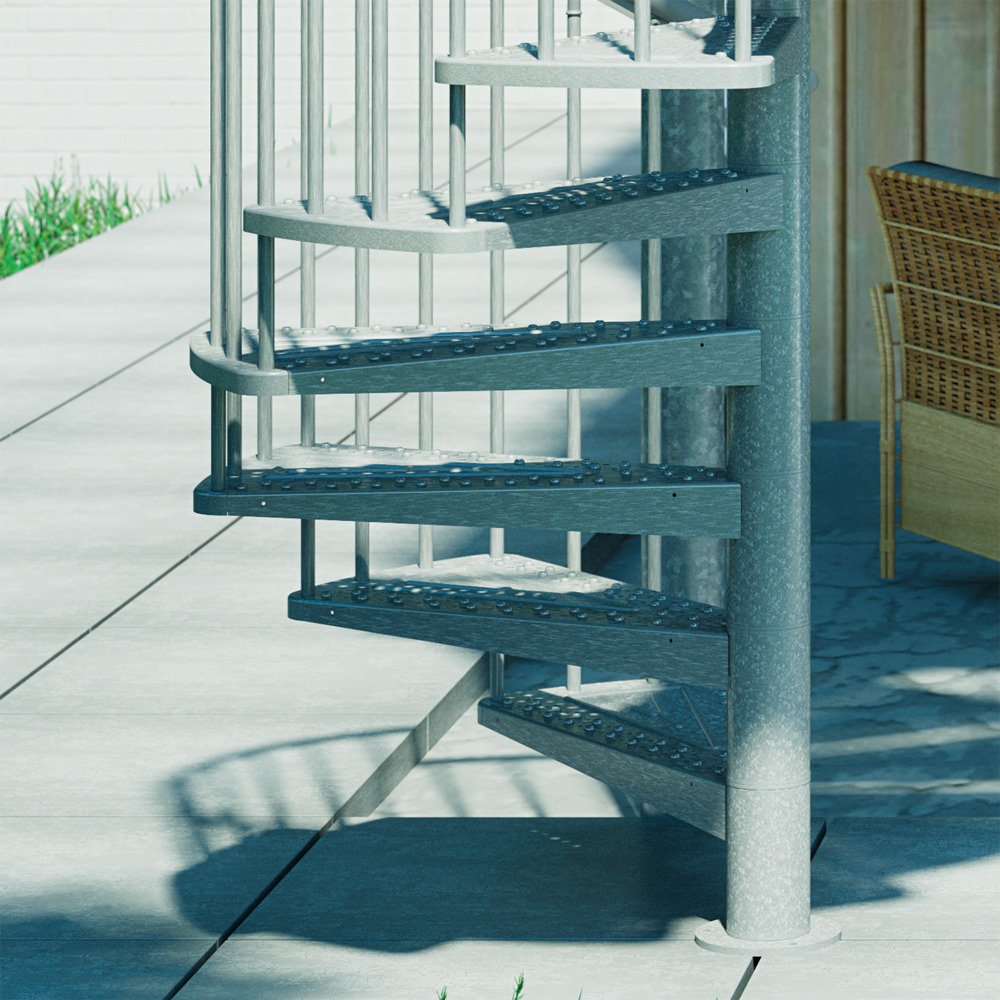

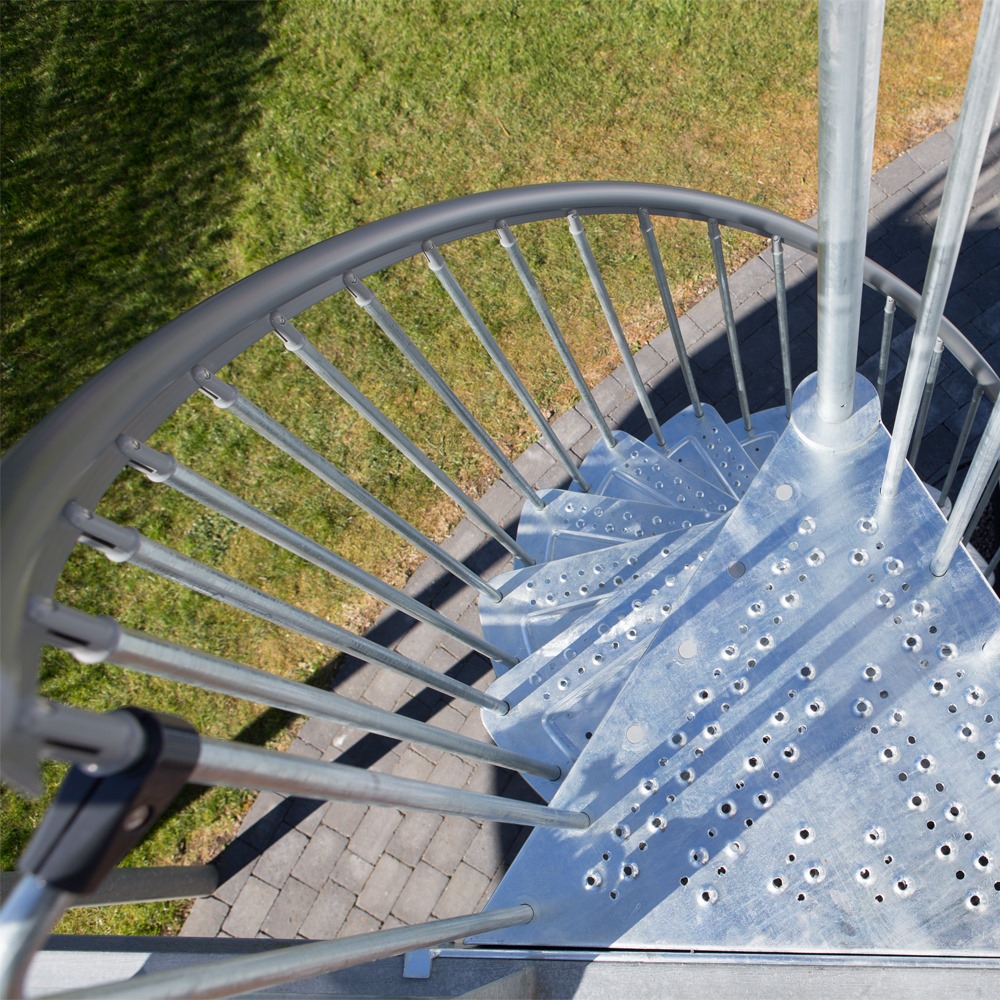

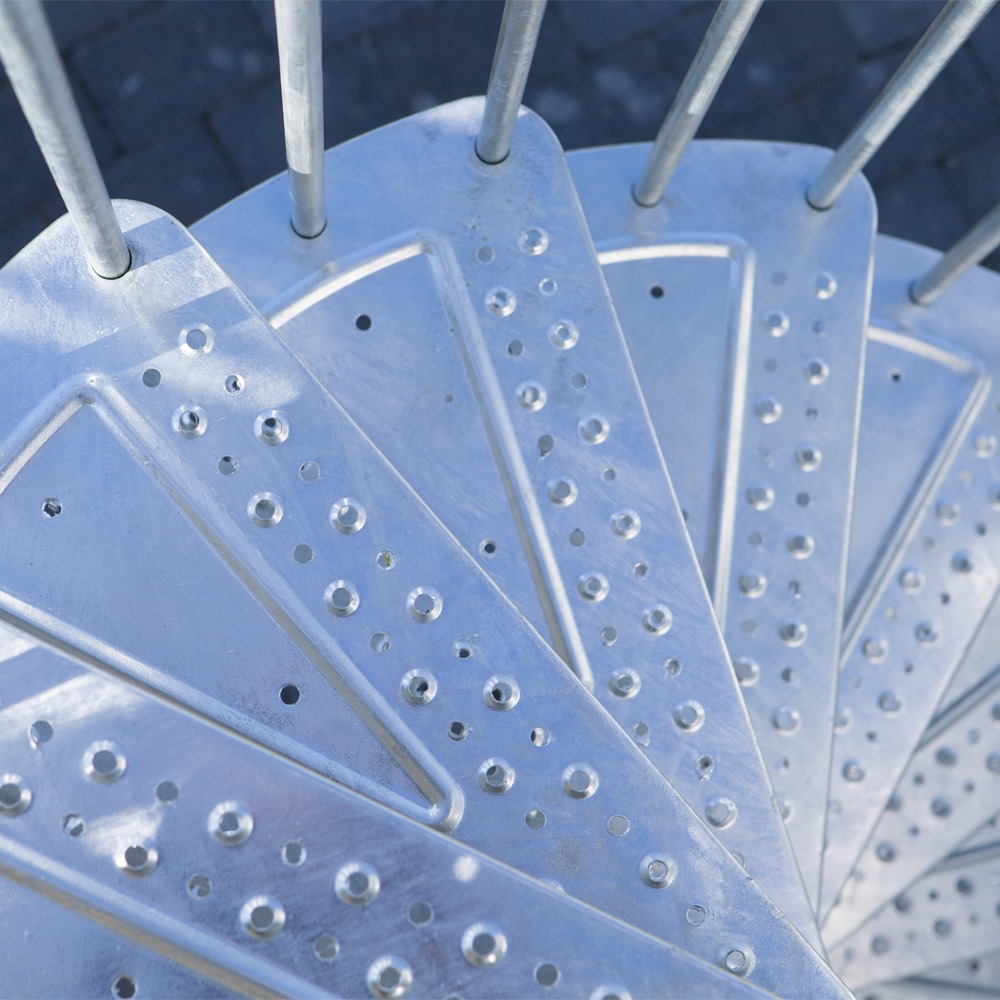

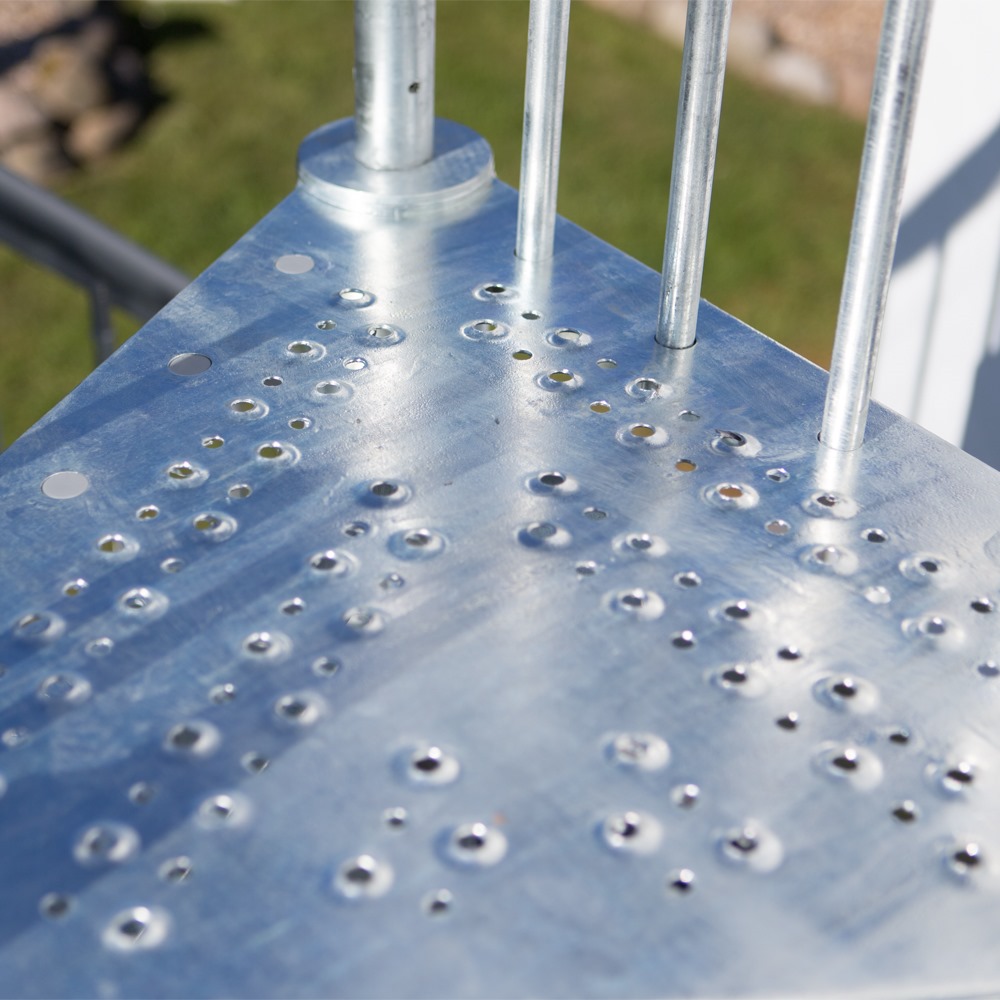

• Treads in hot-dip galvanized perforated sheet steel

• Tread material: perforated metal

• Staircase colour: grey metallic

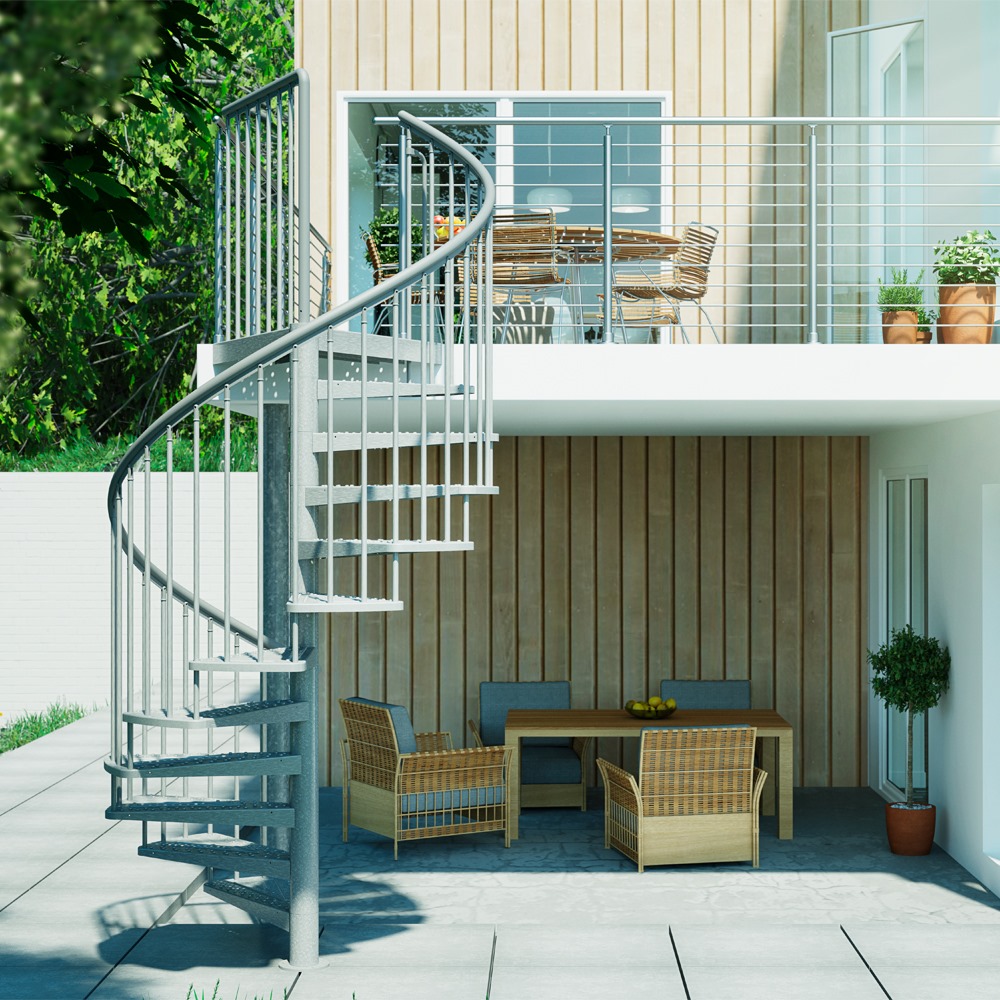

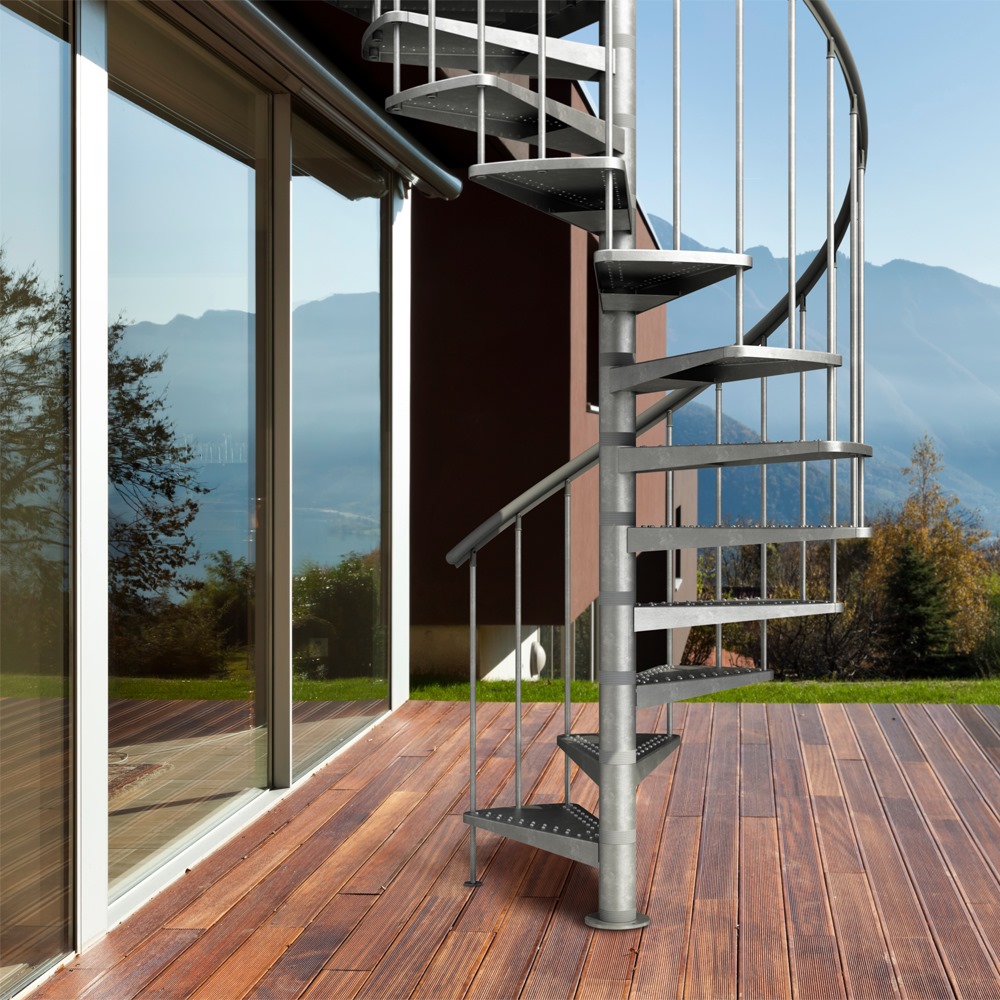

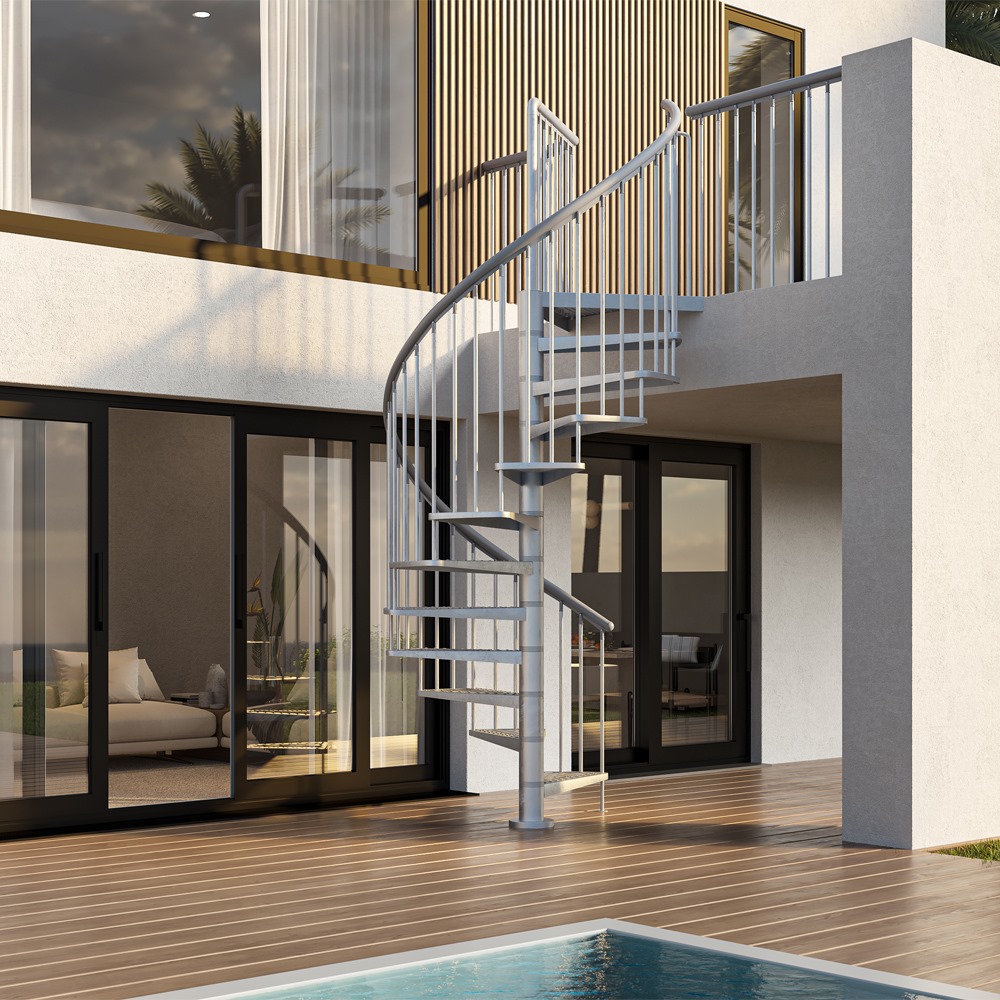

Weather resistant outdoor spiral staircase

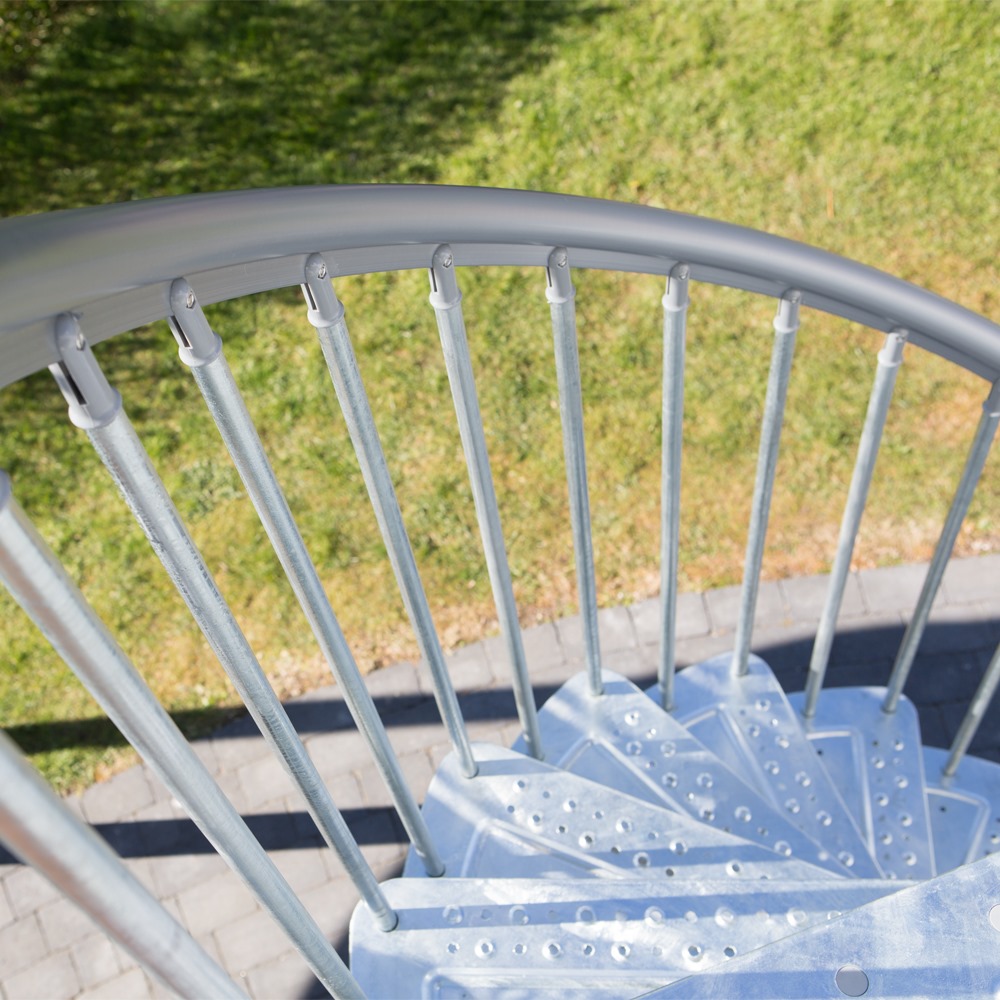

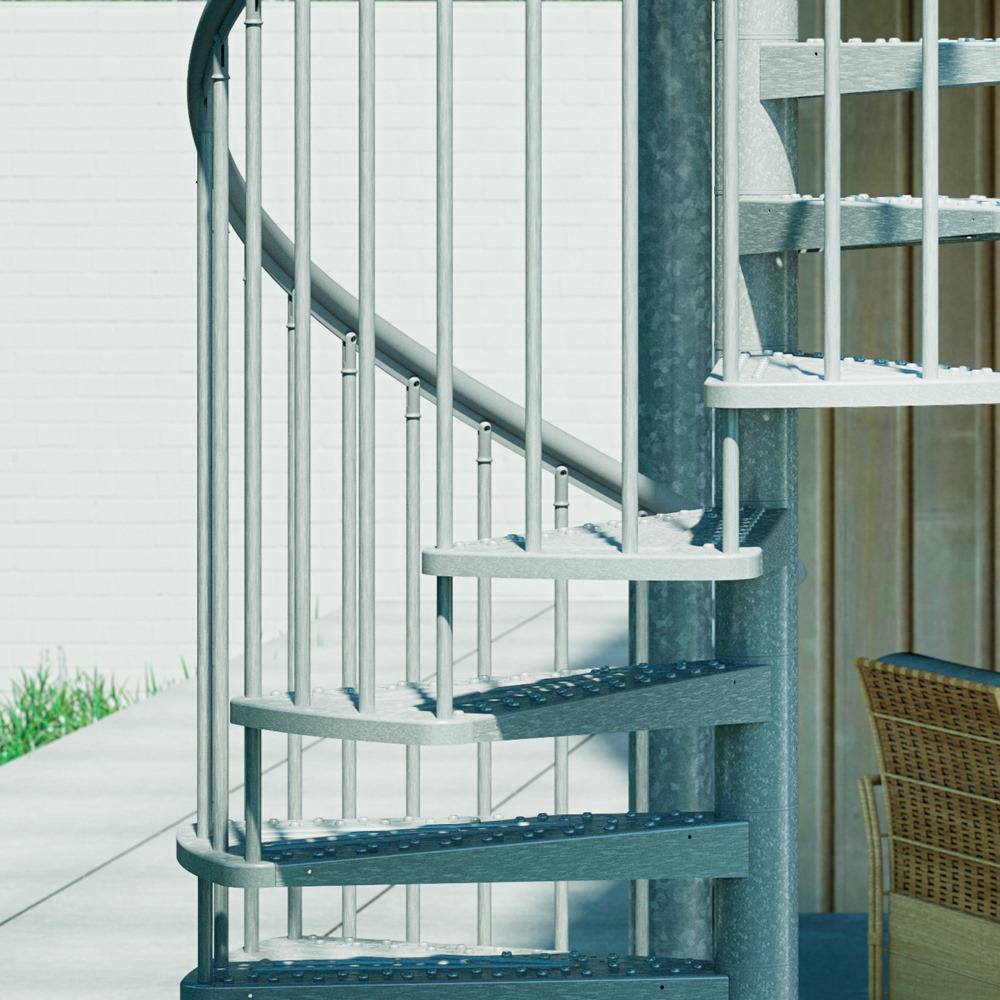

TORONTO Spiral staircase from DOLLE constructed in metal and suitable for both indoor and outdoor use. Designed for convenience, from the balcony or terrace to the garden! The staircase occupies the smallest of space! The DOLLE Toronto is the ideal solution! And can reach a floor height of up to 399cm in safety with its comfort perforated steel steps. The lowest height is 246cm, you can adjust the height to suit your project by using the spacers provided or removing a tread. The banister with round bars is hot dipped galvanised and finished with a rounded plastic handrail. DOLLE Toronto is available in 3 diameters 125, 155 and 185 cm.

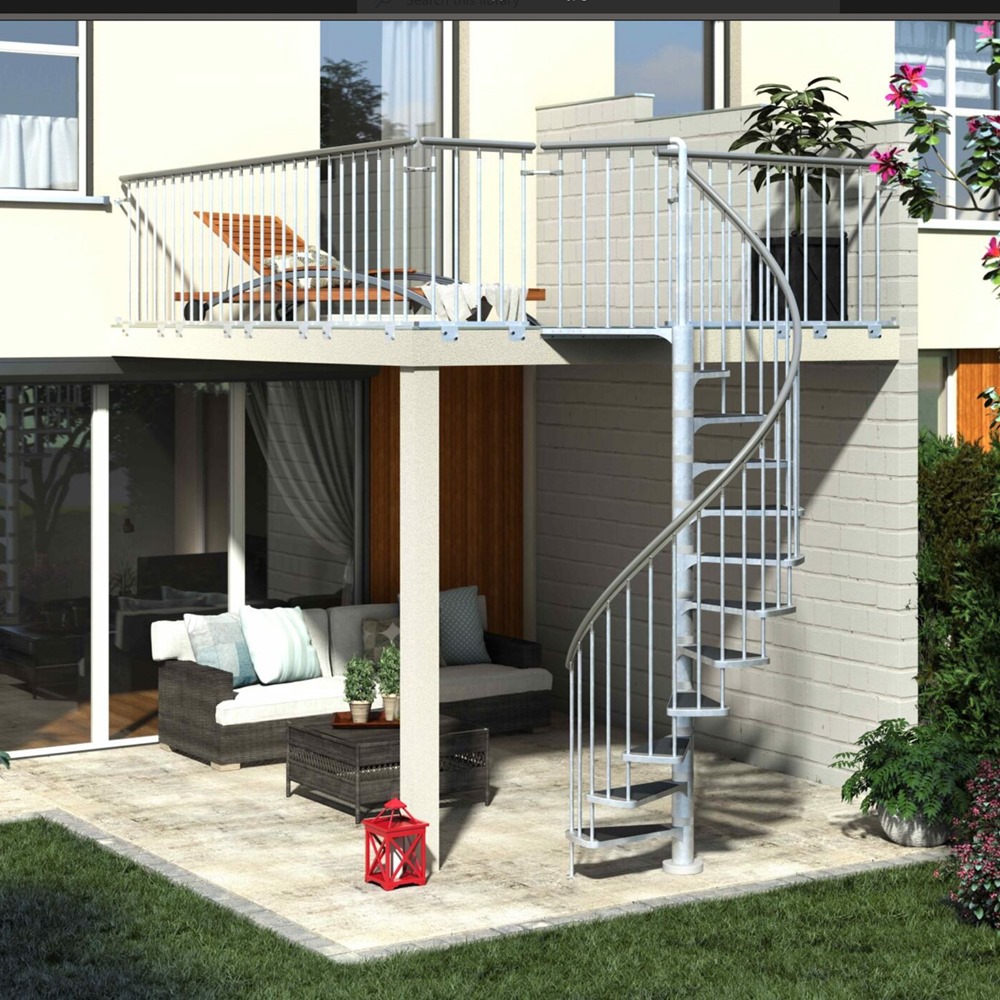

MATCHING LANDING BANISTER

We offer a matching landing banister that will add the final touch, this is important for safety that the banister is 90cm high and has no gaps wider that 100mm. Just measure the length you need, first you will need a starter kit this is 1 metre long and will give you the components to join the banister to the staircase, then you can purchase as many 1 metre packs as you like. To give you an example, if you have 4 metres that’s simple that 1 starter then then 3 extension packs. If you have 3.8 metres, you can cut the second pack down to size. The landing banister will seamlessly flow from the staircase. You can see our range here landing banister.

As a safe basis, a foundation is necessary for the DOLLE Toronto. Plan the foundation at least 40 cm x 40 cm x 40 cm (L x W x D). This information corresponds to normal soil conditions. The stair can be used as left- or right turn and can be used for square or round openings that need to be cut 10cm wider that the width of the staircase you choose. This base spiral staircase kit comes with 11 treads up to 15 treads just choose your floor height from the drop-down menu.

Child proof your staircase by adding riser bars. These will close the gap between the tread for added safety.

If you want to know more about the specifications, you can visit technical data and downloads section to find out more. There is also a video section where you can view a full installation video, this shows the build process from start to finish. It will also give you an insight into the quality of the components we supply.

To ensure the highest quality we manufacture all our staircase to specific standards. All DOLLE spiral staircases complies with European building standards defined in EN 1991 and EN 1993. The staircase TORONTO staircase is certified to a maximum point load of 200 kg and a maximum total load of 620 kg. The banister railing is also approved for a horizontal load of 50 kg metre.

Toronto Outdoor Spiral Staircase are available in Three diameters: 125cm, 155cm and 185cm.

Also see accessories for landing banisters.
