Graz Staircase

The Graz Staircase - Product Description

When you need a quality staircase with space at a premium

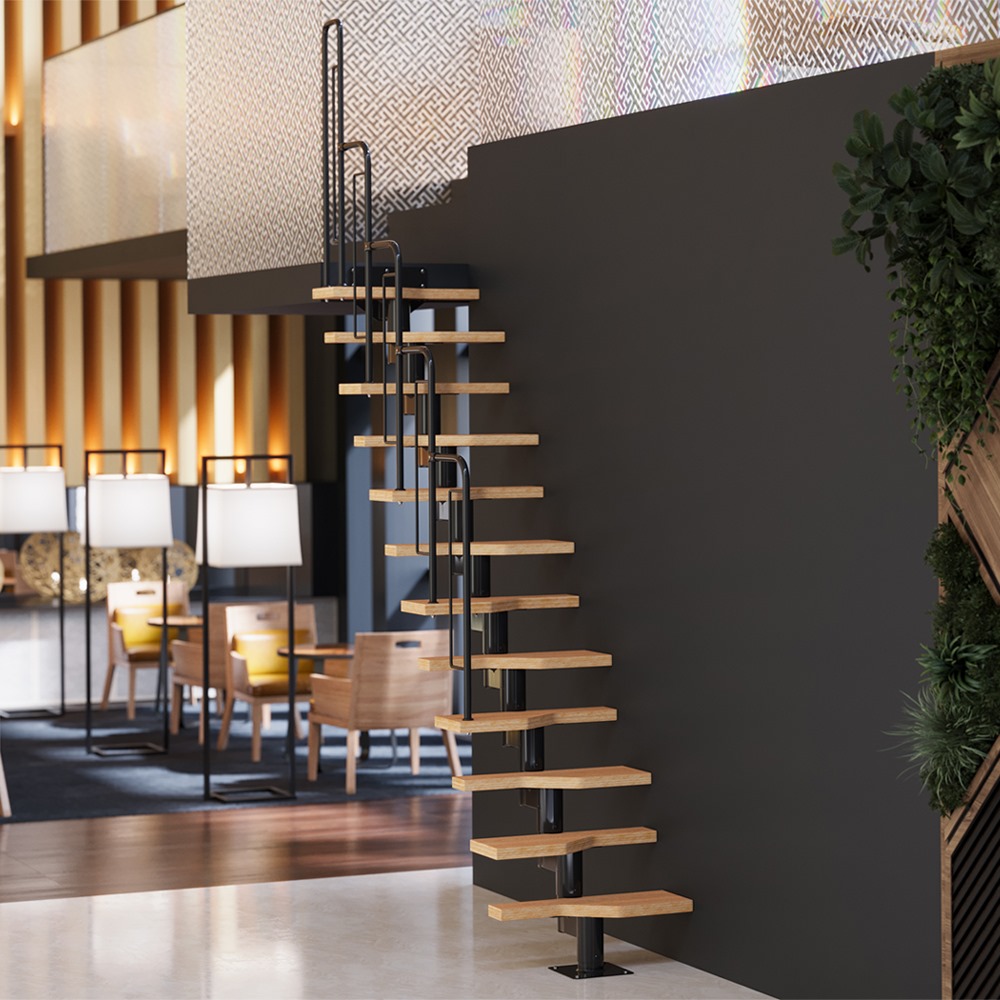

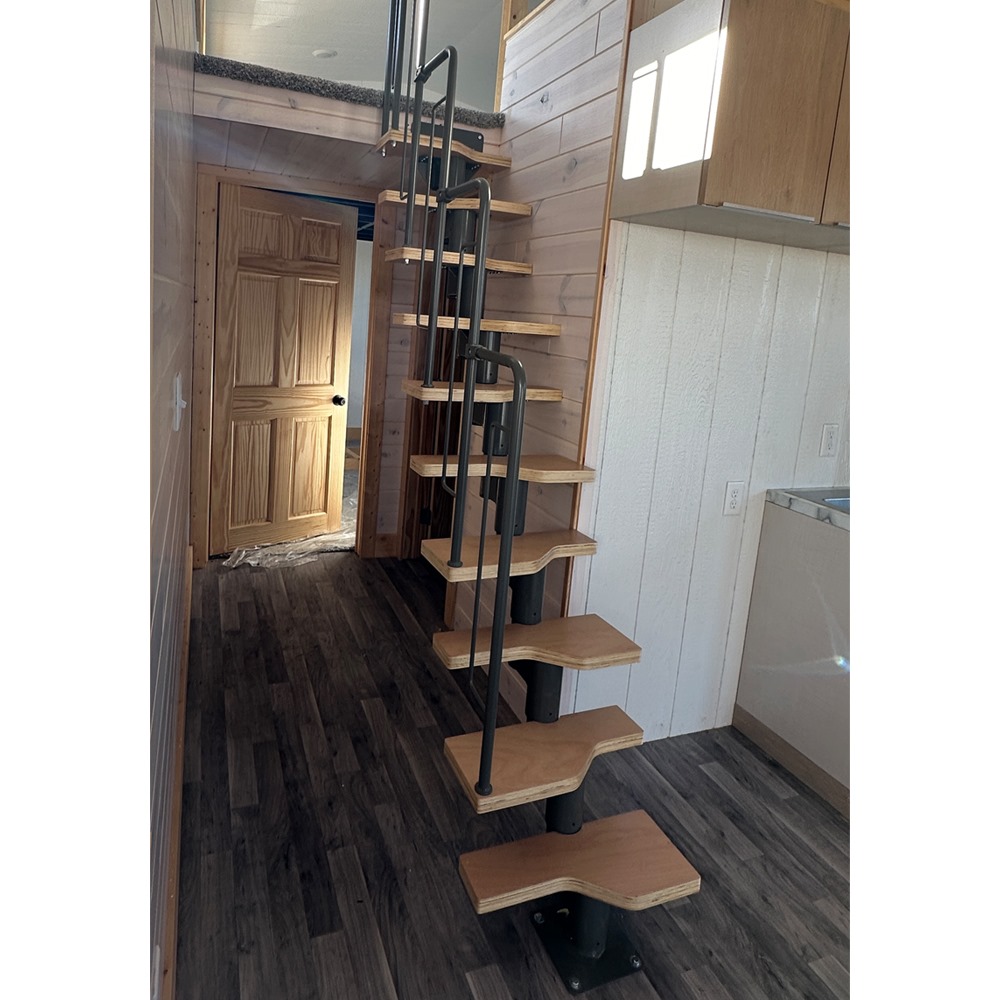

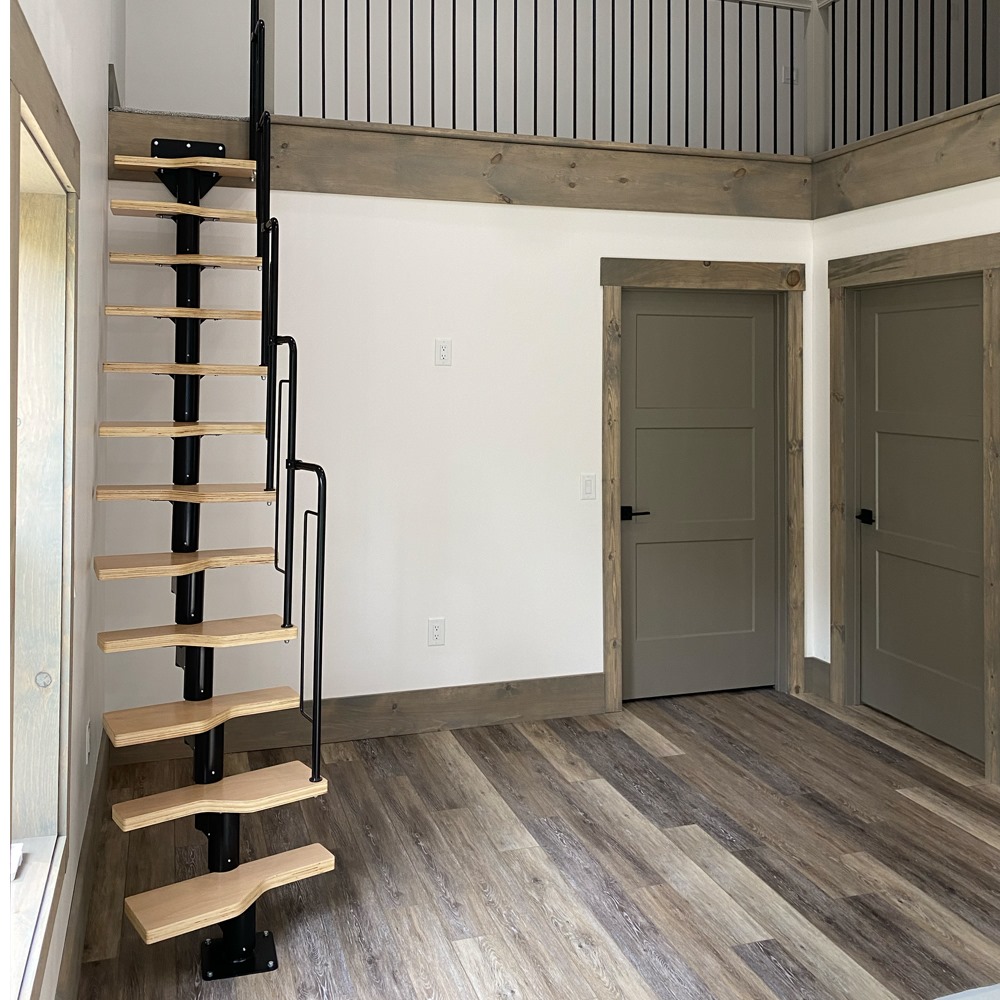

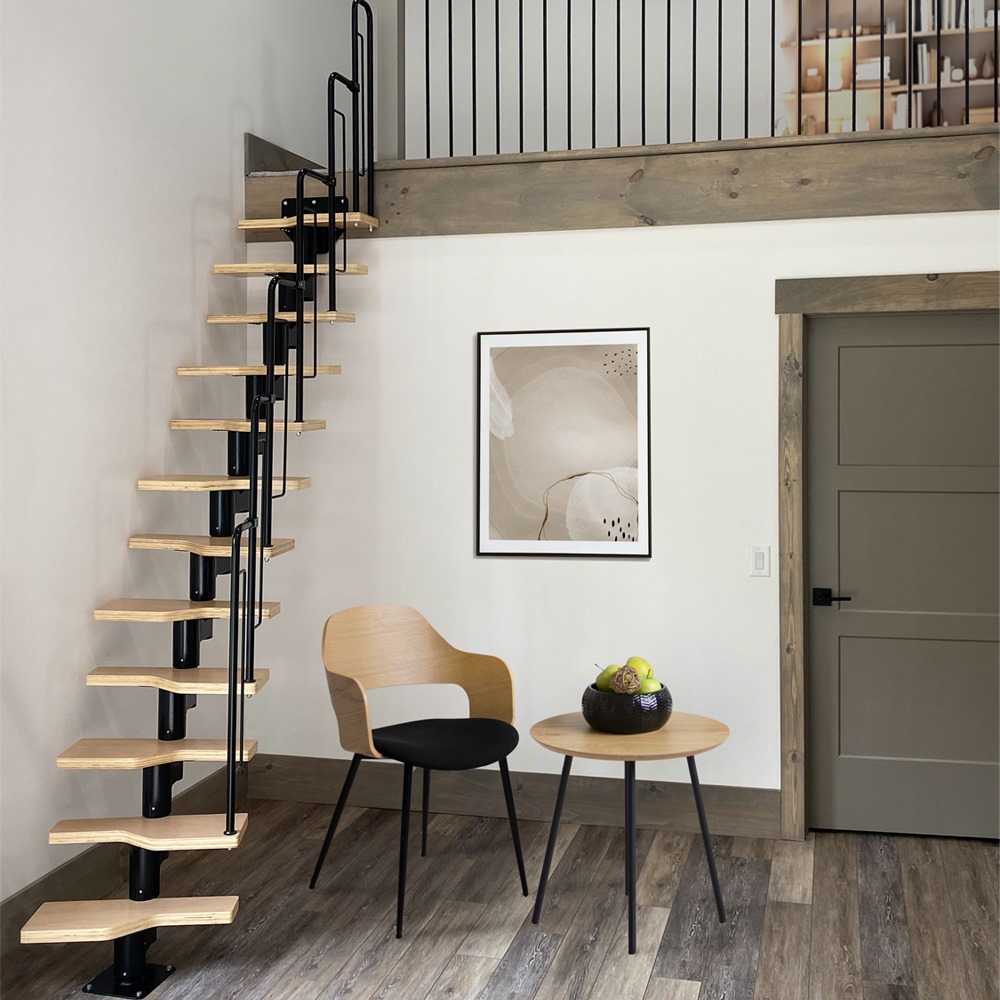

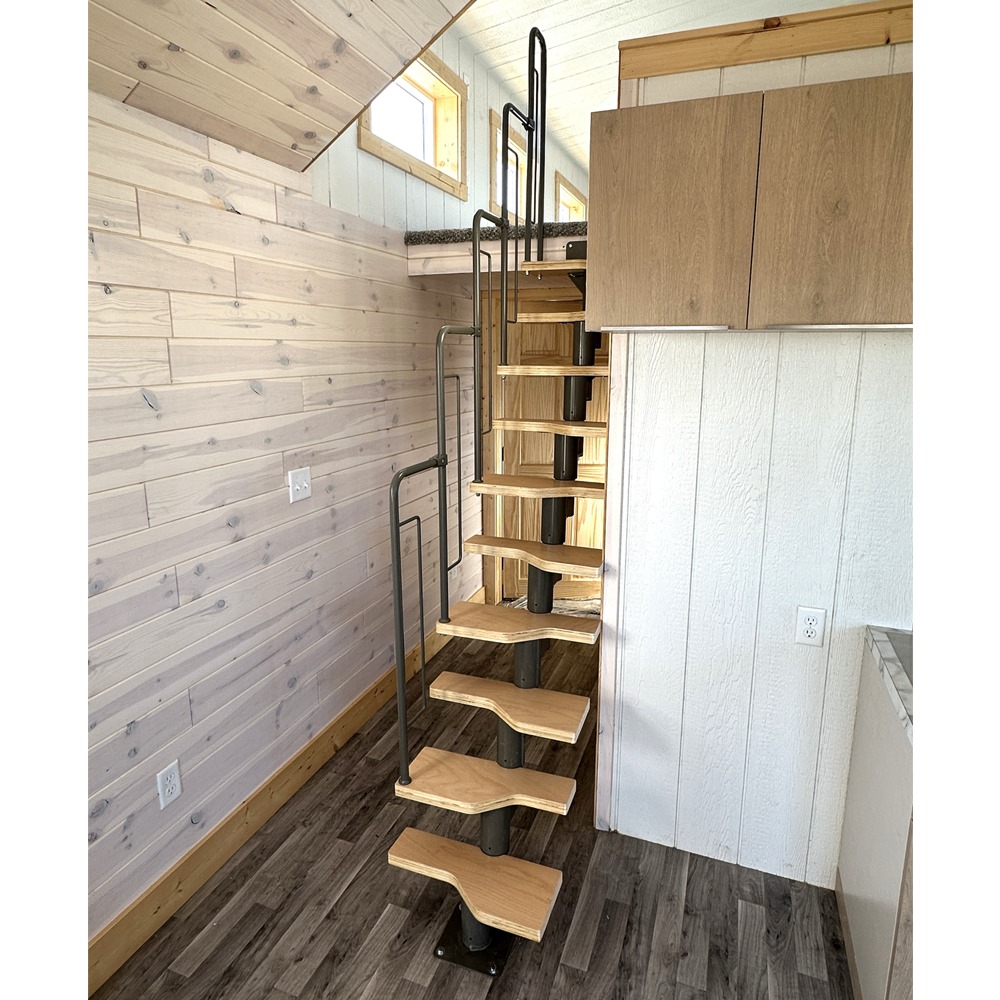

A real space saver staircase from DOLLE being only 58 cm in width but still elegant and adaptable for a variety applications. The stair comes in a one box solution, which makes it easy and simple to install with every part you need included. Open that space you need! Secure access to your loft space, free up mezzanine floor space, playroom? The GRAZ could be the solution for you.

Adaptable, to fit your space

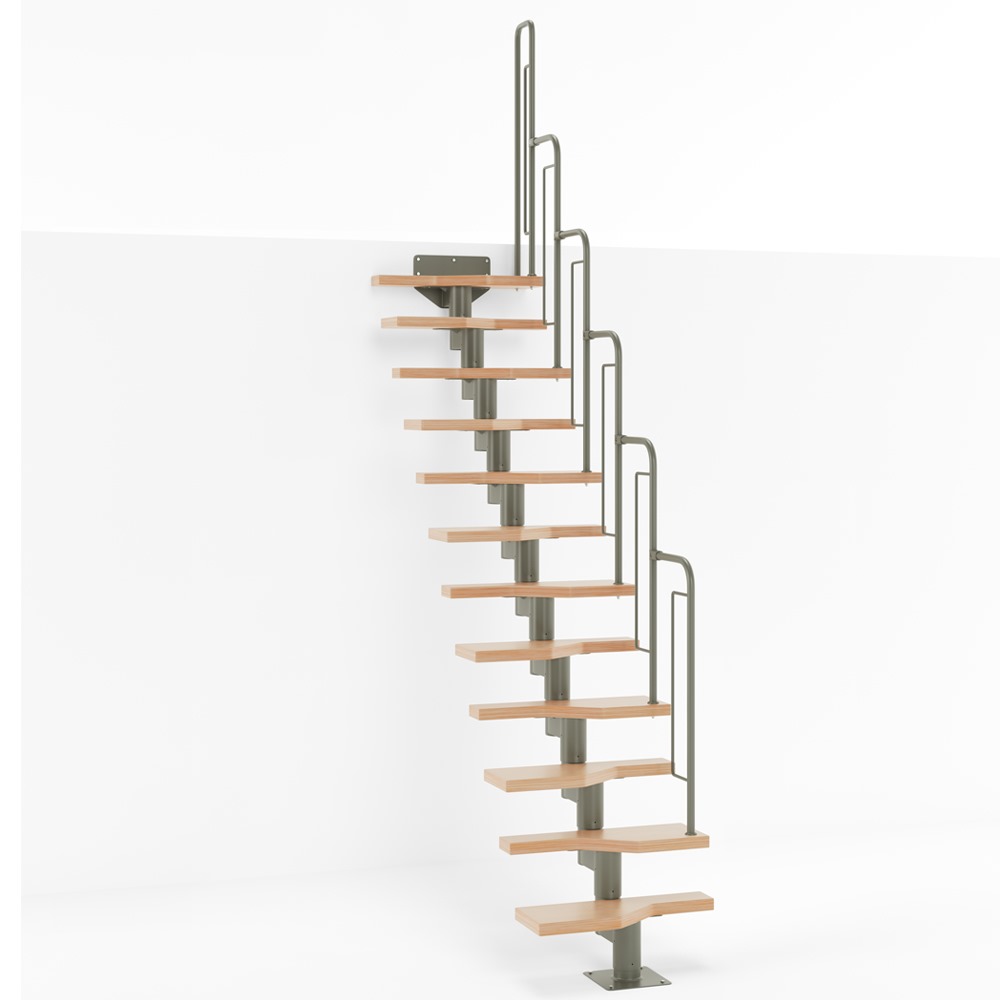

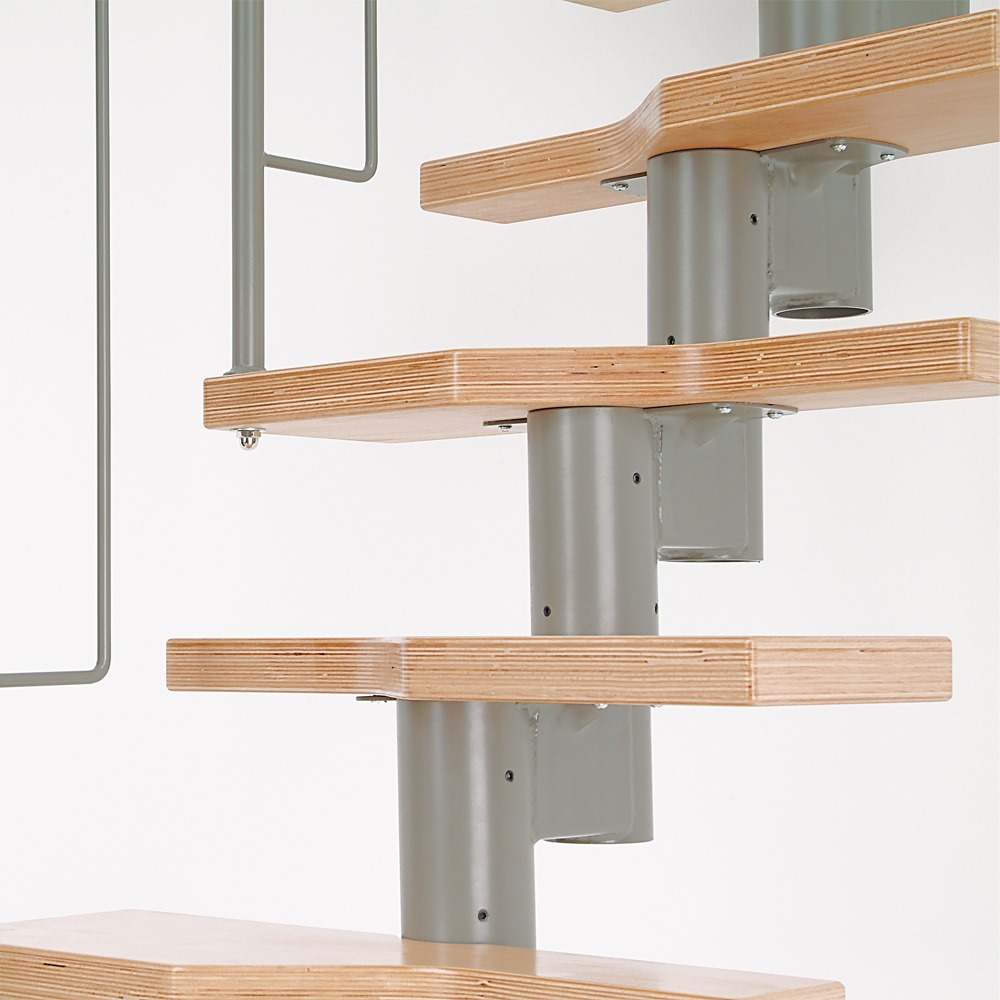

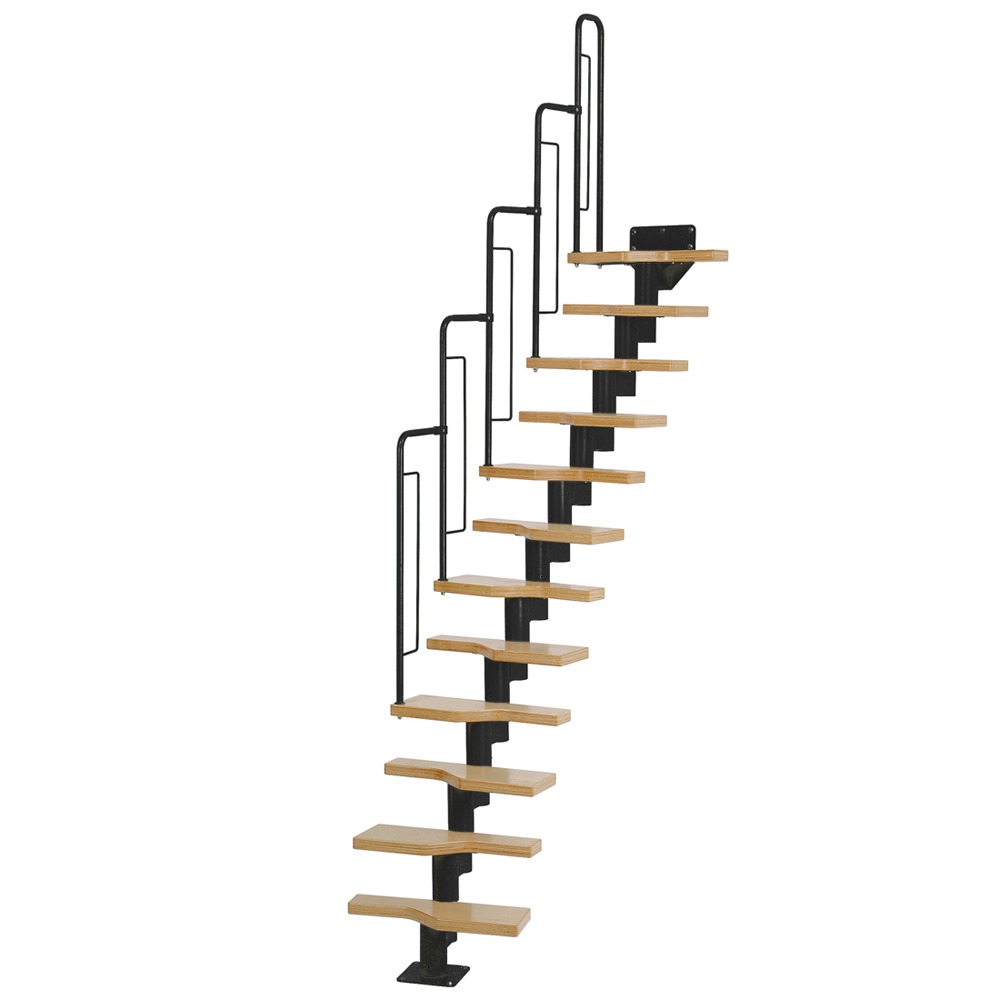

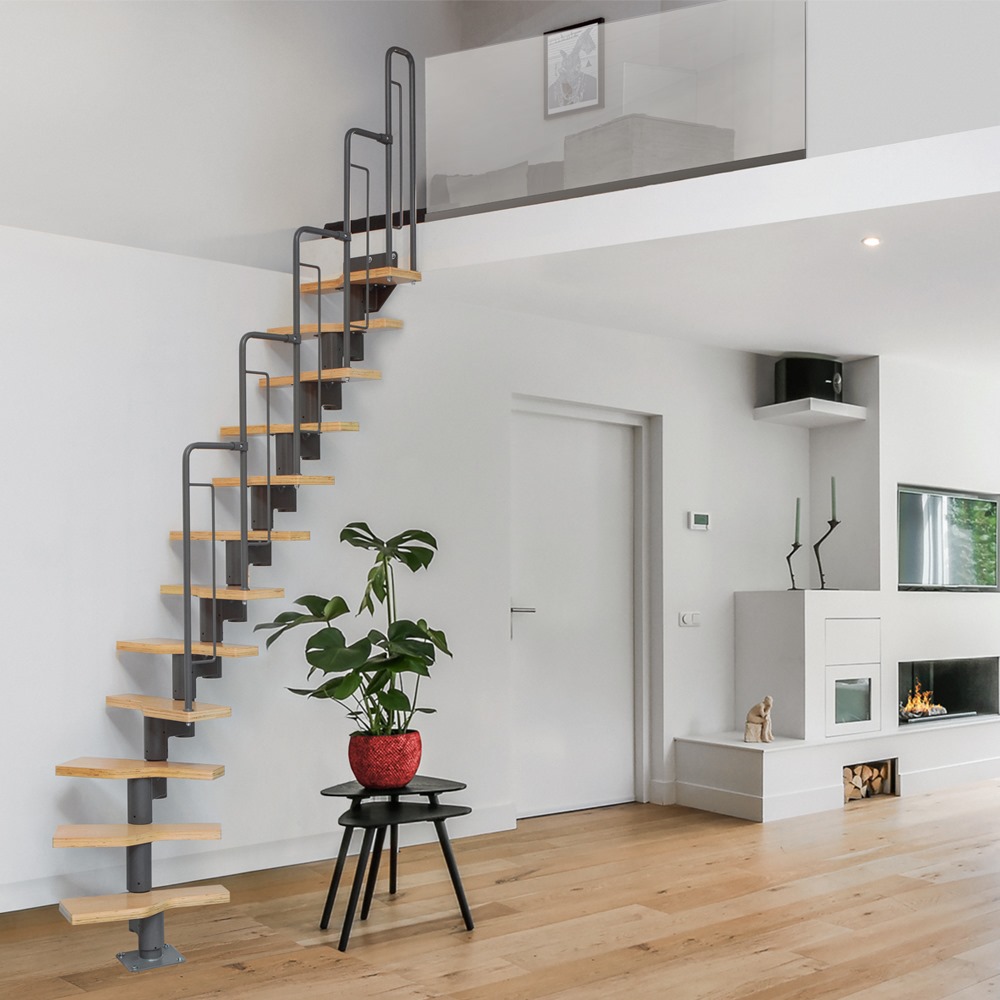

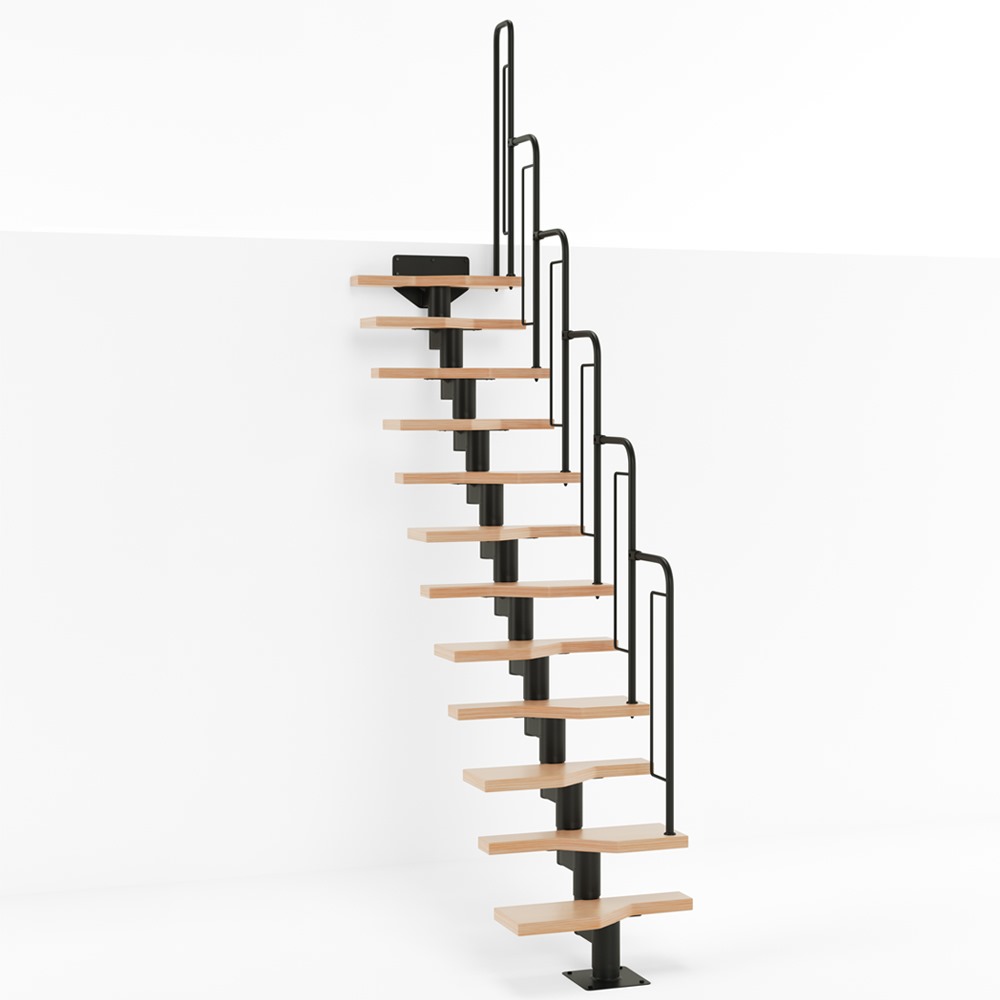

The staircase can be installed to a maximum floor to floor height of 292 cm but can easily be adapted for lower heights. It’s simple to remove treads or even adjust the gap between the treads as rise can be adjusted to suit your height perfectly (18.5 to 22.5 cm). When Installed as a straight flight staircase the horizontal length is only 170 cm, and with quarter turn it is adjustable so 164 cm up to 169 cm, depending on the angle for the quarter turn. You can also choose to turn the staircase gradually, so it forms perfectly into the room space. The treads are quality beech varnished multiplex with two colours available in grey (RAL 9007) or black (RAL 9005) powder-coated metal. Just choose the colour to match your interior design. The quality components that make up the GRAZ staircase mean a solid staircase that’s great value.

High quality

The GRAZ staircase complies with current European building standards defined in EN 1991 and EN 1993. These are specific standard we test and manufacture to that ensures the quality of staircase we supply is of the highest standard. Part of this is a specific test for weight loading and the staircase Graz is certified for maximum point load of 200 kg and a total load of 560 kg. The banister railing is approved for a horizontal load of 50 kg per metre.

Top tips!!!

Will it fit? You can check out our download sections where you will see the staircase dimensions and footprints, this includes information on straight flight and quarter turns.

How easy is it to install? You can view our installation video that show step by steps how to build the staircase from start to finish.

How does the banister fit in a quarter turn? If you will be using the quarter turn staircase you will only use 5 of the handrail banisters not the 6 we supply.

Can I have a handrail both sides? I am afraid this is not an option with our GRAZ staircase, but we have plenty of other options, just visit our space saving staircase section.

Wood is a natural product and the natural colour of the wood may vary from staircase to staircase. Therefore, the colour reproduction of the images may not always reflect the actual colour of the wood.

Certificates

The staircase complies with current European building standards defined in EN 1991 and EN 1993.

The staircase Graz is certified for max. point load of 200 kg and max. total load of 560 kg.

The banister railing is approved for a horizontal load of 50 kg / meter.
